Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

seatommyboy · 2022-05-12 10:57:20

morfik wrote:

I don't know. The messy output started to show yesterday. Maybe it's a temporary thing.

If I'm understanding correctly, you need to modify your conkyrc file. With the latest update on accuweather, the line numbers in daily_forecast output have changed, i.e.
Before the update in my conkyrc file
${voffset 20}${goto 55}${image $HOME/Accuweather_conky_script/forecast_2016/forecast_1.png -p 0,230 -s 40x36}${font }${goto 55}${voffset -20}Today: ${execi 600 sed -n '4p' $HOME/Accuweather_conky_script/daily_forecast}° | ${execi 600 sed -n '5p' $HOME/Accuweather_conky_script/daily_forecast}
${goto 55}${execi 600 sed -n '6p' $HOME/Accuweather_conky_script/daily_forecast}

After update:
${voffset 20}${goto 55}${image $HOME/Accuweather_conky_script/forecast_2016/forecast_1.png -p 0,230 -s 40x36}${font }${goto 55}${voffset -20}Today: ${execi 600 sed -n '3p' $HOME/Accuweather_conky_script/daily_forecast}° | ${execi 600 sed -n '4p' $HOME/Accuweather_conky_script/daily_forecast}
${goto 55}${execi 600 sed -n '5p' $HOME/Accuweather_conky_script/daily_forecast}

As you can see with the numbers I highlighted, the output now gets sent to a different line and therefore, you need to make the adjustments in your conkyrc file (or whatever config file you use).

Cn you post a screenshot of what you are experiencing please?

Last edited by seatommyboy (2022-05-12 11:06:06)

seatommyboy · 2022-05-12 11:03:05

il.harun wrote:

seatommyboy
I don't know how github works. I downloaded Accuweather_conky_script-master.tar.gz, unpacked and compared the new accuweather script with my script using the meld program, changed the code in blocks:
current conditions
daily forecast
Hourly: 24h
Always 100% - worked
my changes or differences:
Accuweather_README_INFO - old README_INFO
Forecast_Images - png 149x150
StartConky_Accuw.sh menu to start conky version 1.9 or 1.10
StartConky_Accuw_and_edit.sh menu to start conky version 1.9 or 1.10 and gedit
conkyconfig - scripts, conky
my changes or differences script accuweather:
do not delete: tendency pressure line 502
added: location, time update line 506
added: curr_cond_control_point line 359
do not delete: raw, temp files line 1066 , 1231-1271 (I am not a programmer, I need these files to compare the old and new files, analyze the problem and repeatedly try to solve it using the sed text editor)
Make 2 project: copy (clone) gitlab Teo, add my script accuweather.
There will be fewer questions.
Correct: Accuweather_conky_script_11_05_2022.tar.gz

Only time I will alter the main script is if it's to udpate with your changes. It's the other files that I have pruned from the tree.

If you're interested:
How to git
It's quite old and a bit outdated, but the basics are there.

seatommyboy · 2022-05-12 11:31:45

@il.harun Looks like accuweather changed things again. I'm no longer getting my weather icons/images

cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/70.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/Wind.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/92.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/71.png': No such file or directory
cp: target '/home/thomas/Accuweather_conky_script/forecast_2016/forecast_3.png' is not a directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/0%.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/Tue.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/5/18.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/99.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/73.png': No such file or directory
cp: target '/home/thomas/Accuweather_conky_script/forecast_2016/forecast_9.png' is not a directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/25%.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/.png': No such file or directory
cp: cannot stat '/home/thomas/Accuweather_conky_script/Forecast_Images_2016/.png': No such file or directory

I just checked my script and it is not modified from yours.

il.harun · 2022-05-12 15:23:05

I haven't tested your script, but it's definitely different from mine.

seatommyboy · 2022-05-12 17:42:13

il.harun wrote:

I haven't tested your script, but it's definitely different from mine.

My script shoudl've bee identical to yours since it is yourrs, but somehow I ended up with some old data in it. Fixed now, thanks for pointing it out.

Repo has been pruned and updated.

seatommyboy · 2022-05-14 16:49:53

I am working on cleaning up the repo some more and organizing things a bit better. I have created a test branch for all to try.
git clone https://github.com/TeamFahQ/1_accuweather -b test
I would suggest keeping this separate from the master branch directory unless you are well versed with git and switching between branches.
The hourly script isn't working correctly. I will be investigating this as well. I tiried hourly with an unmodified version or il.harun's script and it still outputs a lot of errors. But together, I think we can get it working too. Have a great weekend everyone!

asqwerth · 2022-05-15 07:33:01

@il.harun: thank you for the latest 11 May 22 script changes.

I was testing it today and found that the weatherfont code for current weather (22p, curr_cond file) doesn't get generated. Not sure if this is just a temporary glitch or they've changed things again.

Also, I believe the sun and moon rise/setting times and durations (14-16p, 18-20p) are no longer found in the same place as before, as other data shows up in those spots in the curr_cond file.

morfik · 2022-05-15 08:38:31

You could also introduce a $CONKY_DIR variable (for instance CONKY_DIR="${HOME}/.conky") instead of using $HOME everywhere in the accuweather script.

Just be aware that one of $HOME in following block should stay untouched:

		hours=$((12+$h_24hours*12))
		for (( i=1; i<=$hours; i+=1 ))
			do
				if [[ $hourly2015 == 1 ]]; then
					sed -i "4s/$/\${image \$HOME\/.conky\/Accuweather_conky_script\/hourly_2015\/hourly_$i.png -s 60x36 -p $jump_to,25}/" $CONKY_DIR/Accuweather_conky_script/altogether24_2015
				fi
				if [[ $hourly2016 == 1 ]]; then
					sed -i "4s/$/\${image \$HOME\/.conky\/Accuweather_conky_script\/hourly_2016\/hourly_$i.png -s 36x36 -p $jump_to,25}/" $CONKY_DIR/Accuweather_conky_script/altogether24_2016
				fi
				((jump_to+=60))
			done

Last edited by morfik (2022-05-15 08:39:04)

il.harun · 2022-05-15 10:41:15

@asqwerth
thanks for testing
accuweather script: line 375
sed '/sunrise-sunset card-module content-module/,/temp-history content-module/!d' $HOME/Accuweather_conky_script/curr_cond_raw > $HOME/Accuweather_conky_script/curr_cond_temp1

replaced by:
sed '/sunrise-sunset/,/temp-history content-module/!d' $HOME/Accuweather_conky_script/curr_cond_raw > $HOME/Accuweather_conky_script/curr_cond_temp1

@morfik
I've been doing this for years:

		hours=$((12+$h_24hours*12))
		for (( i=1; i<=$hours; i+=1 ))
			do
				if [[ $hourly2015 == 1 ]]; then

#					sed -i "4s/$/\${image \/tmp\/accuweather_en\/hourly_2015\/hourly_$i.png -s 60x36 -p $jump_to,49}/" $directory/altogether24_2015
#
#
					sed -i "4s%$%\${image $directory\/hourly_2015\/hourly_$i.png -s 60x36 -p $jump_to,49}%" $directory/altogether24_2015
				fi

				if [[ $hourly2016 == 1 ]]; then

#					sed -i "4s/$/\${image \/tmp\/accuweather_en\/hourly_2016\/hourly_$i.png -s 36x36 -p $jump_to,49}/" $directory/altogether24_2016
#
#
					sed -i "4s%$%\${image $directory\/hourly_2016\/hourly_$i.png -s 36x36 -p $jump_to,49}%" $directory/altogether24_2016
				fi
				((jump_to+=60))
			done

asqwerth · 2022-05-15 13:14:44

Thanks, il.harun.

The fix works.

And the weatherfont code for current weather has reappeared. So it was just temporary.

KairiTech · 2022-05-15 13:39:07

Great work all. Thanks to everyone for the effort they are putting into keeping the scripts going. It's very much appreciated.

seatommyboy · 2022-05-15 14:48:57

Master and Test branches updated. I rebased both branches for a cleaner look and much cleaner commits. accuweather script in master branch is synced with the script il.harun linked in post #4090

loutch · 2022-05-16 09:45:15

Hello

New script work perfectly with englis adress curr_cong , daily , and hourly and forecast images are here.

In french it work great too just hourly images are not right, i have just

hourly_1 right

hourly_5 right

hourly_6 wrong

hourly_8 right.

It doesn't matter I modified my script & he done this

More tanks for updating the script.

@+

loutch · 2022-05-16 16:09:44

Helo

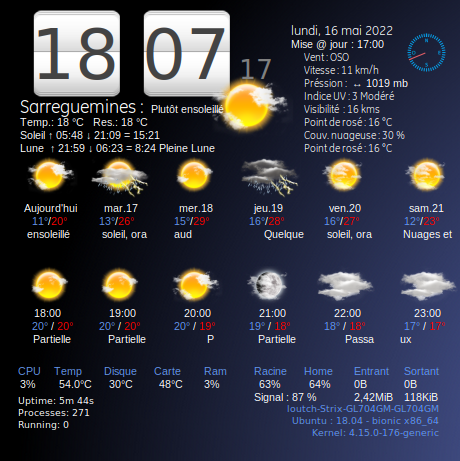

I have it

2 conkys & 2 script 1 in english & 1 in french.

How long the current script will work before accuweather changes again

That is the question.

@+

Last edited by loutch (2022-05-16 16:16:07)

Sector11 · 2022-05-28 15:06:59

Very nice work there!!

rwyarbrough · 2022-06-18 09:44:42

Hi,

After a long time I finally have some time to work on my conky scripts. I almost have the weather script ready using il.harun's archive, but I'm having a problem getting the wind gauge to display the correct direction. How can I debug?

Are there any conky script tutorials anywhere?

I also wanted to find a good barometer script similar to this one minus the temperature stuff:
Barometer Sample found here
but I can't get this one to work because I can't get past getting conkyforecast to work (which this conky needs to work).

Is there a repository of conky scripts for this forum or a general repository somewhere?

@loutch I like this script
loutches script
do you have it or other scripts available for download? Sorry if you posted it before, but I couldn't find it.

Thanks in advance,

Robert

loutch · 2022-06-22 07:33:29

Hello

Here mine baro

I modify it to use wunderground_conky-script

ATTENTION

Wiht conky 1.10 and lua it run three conky

conkyrc (i use the image.lua script for the images)

conky.config = {
	background = true,
	use_xft = true,
	font = 'Liberation Sans:size=7',
	xftalpha = 1,
	update_interval = 1.0,
	total_run_times = 0,
	own_window = true,
	own_window_transparent = true,
--own_window_color 000000
own_window_argb_visual = true,
--own_window_argb_value = 250,
	own_window_type = 'normal',
	own_window_hints = 'undecorated,below,skip_taskbar,skip_pager',
	double_buffer = true,
	minimum_width = 200, minimum_height = 200,
        maximum_width = 200,
	text_buffer_size = 2048,
	draw_shades = false,
	draw_outline = false,
	draw_borders = false,
	draw_graph_borders = false,
	default_color = 'white',
	default_outline_color = 'white',
	alignment = 'top_left',
	gap_x = 400,
	gap_y = 230,
	no_buffers = true,
	uppercase = false,
	cpu_avg_samples = 2,
	override_utf8_locale = true,
imlib_cache_flush_interval = 60,
	imlib_cache_size = 10000,


-- Taille des pointillés
	stippled_borders = 5,

-- Couleurs
	default_color = '#ffffff',--ffd579
	default_shade_color = '#333333',
	default_outline_color = 'black',

 lua_load = '~/.conky/lua/image.lua',


color1 = 'D2CBC1',
color2 = 'red',
color3 = '6495ee',
color4 = 'B1ADA7',
color5 = '7B7870',
color6 = '3F3C36',
color7 = '000000',

};

conky.text = [[

${lua fDrawImage ~/.conky/baro/images/15.png   0 90 40 40}
${lua fDrawImage ~/.conky/baro/images/18.png   2 50 40 40}
${lua fDrawImage ~/.conky/baro/images/12.png  25 20 40 40}
${lua fDrawImage ~/.conky/baro/images/13.png  60  0 40 40}
${Lua fDrawImage ~/.conky/baro/images/3.png  110  0 40 40}
${Lua fDrawImage ~/.conky/baro/images/4.png  145 20 40 40}
${lua fDrawImage ~/.conky/baro/images/2.png  160 50 40 40}
${lua fDrawImage ~/.conky/baro/images/1.png  165 90 40 40}
${alignc}${execi 90 sed -n '8p' $HOME/1_accuweather/curr_cond} mb
${font Ubuntu:style=Bold:size=14}
${voffset -1}${goto 22}${color2}T${execi 90 sed -n '2p' $HOME/1_accuweather/curr_cond}° ${goto 140}${color3}R${execi 90 sed -n '3p' $HOME/1_accuweather/curr_cond}°

]];

conkyrc1 (for textwittring.lua)

conky.config = {
	background = true,
	use_xft = true,
	font = 'Liberation Sans:size=7',
	xftalpha = 1,
	update_interval = 1.0,
	total_run_times = 0,
	own_window = true,
	own_window_transparent = true,
--own_window_color 000000
own_window_argb_visual = true,
--own_window_argb_value = 250,
	own_window_type = 'normal',
	own_window_hints = 'undecorated,below,skip_taskbar,skip_pager',
	double_buffer = true,
	minimum_width = 200, minimum_height = 200,
        maximum_width = 200,
	text_buffer_size = 2048,
	draw_shades = false,
	draw_outline = false,
	draw_borders = false,
	draw_graph_borders = false,
	default_color = 'white',
	default_outline_color = 'white',
	alignment = 'top_left',
	gap_x = 400,
	gap_y = 230,
	no_buffers = true,
	uppercase = false,
	cpu_avg_samples = 2,
	override_utf8_locale = true,
imlib_cache_flush_interval = 60,
	imlib_cache_size = 10000,


-- Taille des pointillés
	stippled_borders = 5,

-- Couleurs
	default_color = '#ffffff',--ffd579
	default_shade_color = '#333333',
	default_outline_color = 'black',


 lua_load = ' ~/.conky/ROGConky/baro/textwriting.lua',
 lua_draw_hook_post = 'draw_text',


color1 = 'D2CBC1',
color2 = 'red',
color3 = 'blue',
color4 = 'B1ADA7',
color5 = '7B7870',
color6 = '3F3C36',
color7 = '000000',

};

conky.text = [[

]];

conkyrc2 ( for baro.lua)

conky.config = {
	background = true,
	use_xft = true,
	font = 'Liberation Sans:size=7',
	xftalpha = 1,
	update_interval = 1.0,
	total_run_times = 0,
	own_window = true,
	own_window_transparent = true,
--own_window_color 000000
own_window_argb_visual = true,
--own_window_argb_value = 250,
	own_window_type = 'normal',
	own_window_hints = 'undecorated,below,skip_taskbar,skip_pager',
	double_buffer = true,
	minimum_width = 200, minimum_height = 200,
        maximum_width = 200,
	text_buffer_size = 2048,
	draw_shades = false,
	draw_outline = false,
	draw_borders = false,
	draw_graph_borders = false,
	default_color = 'white',
	default_outline_color = 'white',
	alignment = 'top_left',
	gap_x = 400,
	gap_y = 230,
	no_buffers = true,
	uppercase = false,
	cpu_avg_samples = 2,
	override_utf8_locale = true,
imlib_cache_flush_interval = 60,
	imlib_cache_size = 10000,


-- Taille des pointillés
	stippled_borders = 5,

-- Couleurs
	default_color = '#ffffff',--ffd579
	default_shade_color = '#333333',
	default_outline_color = 'black',


 lua_load = ' ~/.conky/ROGConky/baro/baro.lua',
 lua_draw_hook_pre = 'main',


color1 = 'D2CBC1',
color2 = 'red',
color3 = 'blue',
color4 = 'B1ADA7',
color5 = '7B7870',
color6 = '3F3C36',
color7 = '000000',

};

conky.text = [[

]];

textwritting.lua

--[[circlewriting by mrpeachy (2010)]]
require 'cairo'
function addzero100(num)
if tonumber(num) < 10 then
return "00" .. num
elseif tonumber(num) <100 then
return "0" .. num
else
return num
end
end

function string:split(delimiter)
local result = { }
local from  = 1
local delim_from, delim_to = string.find( self, delimiter, from  )
while delim_from do
table.insert( result, string.sub( self, from , delim_from-1 ) )
from  = delim_to + 1
delim_from, delim_to = string.find( self, delimiter, from  )
end
table.insert( result, string.sub( self, from  ) )
return result
end

function circlewriting(cr, text, font, fsize, radi, horiz, verti, tred, tgreen, tblue, talpha, start, finish, var1)
local inum=string.len(text)
range=finish
deg=(finish-start)/(inum-1)
degrads=1*(math.pi/180)
local textcut=string.gsub(text, ".", "%1@@@")
texttable=string.split(textcut, "@@@")
for i = 1,inum do
ival=i
interval=(degrads*(start+(deg*(i-1))))+var1
interval2=degrads*(start+(deg*(i-1)))
txs=0+radi*(math.sin(interval))
tys=0-radi*(math.cos(interval))
cairo_select_font_face (cr, font, CAIRO_FONT_SLANT_NORMAL, CAIRO_FONT_WEIGHT_NORMAL);
cairo_set_font_size (cr, fsize);
cairo_set_source_rgba (cr, tred, tgreen, tblue, talpha);
cairo_move_to (cr, txs+horiz, tys+verti);
cairo_rotate (cr, interval2)
cairo_show_text (cr, (texttable[i]))
cairo_stroke (cr)
cairo_rotate (cr, -interval2)
end
end

function circlewritingdown(cr, text, font, fsize, radi, horiz, verti, tred, tgreen, tblue, talpha, start, finish, var1)
local inum=string.len(text)
deg=(start-finish)/(inum-1)
degrads=1*(math.pi/180)
local textcut=string.gsub(text, ".", "%1@@@")
texttable=string.split(textcut, "@@@")
for i = 1,inum do
ival=i
interval=(degrads*(start-(deg*(i-1))))+var1
interval2=degrads*(start-(deg*(i-1)))
txs=0+radi*(math.sin(interval))
tys=0-radi*(math.cos(interval))
cairo_select_font_face (cr, font, CAIRO_FONT_SLANT_NORMAL, CAIRO_FONT_WEIGHT_NORMAL);
cairo_set_font_size (cr, fsize);
cairo_set_source_rgba (cr, tred, tgreen, tblue, talpha);
cairo_move_to (cr, txs+horiz, tys+verti);
cairo_rotate (cr, interval2+(180*math.pi/180))
cairo_show_text (cr, (texttable[i]))
cairo_stroke (cr)
cairo_rotate (cr, -interval2-(180*math.pi/180))
end
end

function conky_draw_text()
local updates=conky_parse('${updates}')
update_num=tonumber(updates)
if update_num > 5 then
if conky_window==nil then return end
local w=conky_window.width
local h=conky_window.height
local cs=cairo_xlib_surface_create(conky_window.display, conky_window.drawable, conky_window.visual, w, h)
cr=cairo_create(cs)



--circlewriting variable
cpu=tonumber(conky_parse('${cpu}'))
--text must be in quotes
text=("Tempete - Pluie - Variable - Beau - Tres Sec")
--text=("Stormy - Rain - Change - Fair - Very Dry")
--font name must be in quotes
font="DejaVuSansMono:bold"
fontsize=9
radius=56
positionx=100
positiony=100
colorred=0.24
colorgreen=0.56
colorblue=0.72
coloralpha=1
--to set start and finish values for circlewriting, if the text will cross 0 degrees then you must calculate for 360+finish degrees
--eg if you want to go from 270 to 90, then you will input 270 to 450.  Finish has to be greater than start.
start=-115
finish=115
letterposition=0
circlewriting(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

--circlewritingdown variables
--mem=tonumber(conky_parse('${memperc}'))
--text must be in quotes
text=(" 0 ")
--font name must be in quotes
font="DejaVuSansMono:bold"
fontsize=8
radius=38
positionx=100
positiony=130
colorred=0.24
colorgreen=0.56
colorblue=0.72
coloralpha=1
--to set start and finish values for circlewritingdown, if the text will cross 0 degrees then you must calculate for 0-finish degrees
--eg if you want to go from 90 to 270, then you will input 90 to -90.  Start has to be greater than finish
start=150
finish=144
letterposition=0
circlewritingdown(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

text=("50")
font="DejaVuSansMono:bold"
fontsize=8
radius=38
positionx=100
positiony=130
colorred=0.24
colorgreen=0.56
colorblue=0.72
coloralpha=1
start=268
finish=262
letterposition=0
circlewritingdown(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

text=("40")
font="DejaVuSansMono:bold"
fontsize=8
radius=38
positionx=100
positiony=130
colorred=0.24
colorgreen=0.56
colorblue=0.72
coloralpha=1
start=245
finish=239
letterposition=0
circlewritingdown(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

text=("30")
font="DejaVuSansMono:bold"
fontsize=8
radius=38
positionx=100
positiony=130
colorred=0.24
colorgreen=0.56
colorblue=0.72
coloralpha=1
start=222
finish=216
letterposition=0
circlewritingdown(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

text=("20")
font="DejaVuSansMono:bold"
fontsize=8
radius=38
positionx=100
positiony=130
colorred=0.24
colorgreen=0.56
colorblue=0.72
coloralpha=1
start=199
finish=193
letterposition=0
circlewritingdown(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

text=("10")
font="DejaVuSansMono:bold"
fontsize=8
radius=38
positionx=100
positiony=130
colorred=0.24
colorgreen=0.56
colorblue=0.72
coloralpha=1
start=176
finish=170
letterposition=0
circlewritingdown(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

text=("-10")
font="DejaVuSansMono:bold"
fontsize=8
radius=38
positionx=100
positiony=130
colorred=1
colorgreen=0
colorblue=0
coloralpha=1
start=134
finish=124
letterposition=0
circlewritingdown(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

text=("-20")
font="DejaVuSansMono:bold"
fontsize=8
radius=38
positionx=100
positiony=130
colorred=1
colorgreen=0
colorblue=0
coloralpha=1
start=112
finish=99
letterposition=0
circlewritingdown(cr, text, font, fontsize, radius, positionx, positiony, colorred, colorgreen, colorblue, coloralpha, start, finish, letterposition)

end
end

baro.lua

--==============================================================================
--                                 baro.lua
--
--  author  : SLK-adapted by shamen456
--  version : v2011-06-13
--  license : Distributed under the terms of GNU GPL version 2 or later
--
--==============================================================================

require 'cairo'


--------------------------------------------------------------------------------
--                                                                    gauge DATA
gauge = {

{
    name='cpu',                arg='',                      max_value=1060, sub_value=960,
    x=100,                          y=100,
    graph_radius=60,
    graph_thickness=10,
    graph_start_angle=235,
    graph_unit_angle=2.5,          graph_unit_thickness=2.,
    graph_bg_colour=0xFFFFFF,      graph_bg_alpha=0.0,
    graph_fg_colour=0xB1ADA7,      graph_fg_alpha=0,
    hand_fg_colour=0x000000,       hand_fg_alpha=0.0,
    txt_radius=20,
    txt_weight=0,                  txt_size=10.0,
    txt_fg_colour=0xFFFFFF,        txt_fg_alpha=0,
    graduation_radius=50,
    graduation_thickness=8,        graduation_mark_thickness=2,
    graduation_unit_angle=18,
    graduation_fg_colour=0x4F4B41, graduation_fg_alpha=0,
    caption='',
    caption_weight=1,              caption_size=8.0,
    caption_fg_colour=0xFFFFFF,    caption_fg_alpha=0.0,
},
{
    name='exec',                arg='sed -n 26p $HOME/Wunderground_conky_script/curr_cond',                      max_value=1050, sub_value=950,
    x=100,                          y=100,
    graph_radius=25,
    graph_thickness=60,
    graph_start_angle=255,
    graph_unit_angle=2.1,          graph_unit_thickness=2.,
    graph_bg_colour=0xFFFFFF,      graph_bg_alpha=0.0,
    graph_fg_colour=0xB1ADA7,      graph_fg_alpha=0.0,
    hand_fg_colour=0xffffff,       hand_fg_alpha=1,
    txt_radius=20,
    txt_weight=0,                  txt_size=10.0,
    txt_fg_colour=0xFFFFFF,        txt_fg_alpha=0,
    graduation_radius=50,
    graduation_thickness=8,        graduation_mark_thickness=2,
    graduation_unit_angle=18,
    graduation_fg_colour=0xffffff, graduation_fg_alpha=1,
    caption='',
    caption_weight=1,              caption_size=8.0,
    caption_fg_colour=0xFFFFFF,    caption_fg_alpha=0,
},
{
    name='exec',                arg='sed -n 52p $HOME/Wunderground_conky_script/curr_cond',
    max_value=60,                   sub_value=-30,--valeur de depart du graphe
    x=100,                          y=130,
    graph_radius=20,
    graph_thickness=40,
    graph_start_angle=75,
    graph_unit_angle=2.33,          graph_unit_thickness=1.5,
    graph_bg_colour=0xFFFFFF,      graph_bg_alpha=0.0,
    graph_fg_colour=0xB1ADA7,      graph_fg_alpha=0,
    hand_fg_colour=0xff0000,       hand_fg_alpha=1,
    txt_radius=18,
    txt_weight=1,                  txt_size=10.0,
    txt_fg_colour=0xC0C0FF,        txt_fg_alpha=0,
    graduation_radius=20,
    graduation_thickness=8,        graduation_mark_thickness=2,
    graduation_unit_angle=11.6,
    graduation_fg_colour=0xffffff, graduation_fg_alpha=1,
    caption='',
    caption_weight=1,              caption_size=8.0,
    caption_fg_colour=0xFFFFFF,    caption_fg_alpha=0,
},
{
    name='exec',                arg='sed -n 58p $HOME/Wunderground_conky_script/curr_cond',                      max_value=60, sub_value=-30,
    x=100,                          y=130,
    graph_radius=20,
    graph_thickness=40,
    graph_start_angle=75,
    graph_unit_angle=2.33,          graph_unit_thickness=1.5,
    graph_bg_colour=0xFFFFFF,      graph_bg_alpha=0.,
    graph_fg_colour=0xB1ADA7,      graph_fg_alpha=0,
    hand_fg_colour=0x6495ee,       hand_fg_alpha=1,
    txt_radius=30,
    txt_weight=1,                  txt_size=10.0,
    txt_fg_colour=0xED7F77,        txt_fg_alpha=0,
    graduation_radius=22,
    graduation_thickness=14,        graduation_mark_thickness=2,
    graduation_unit_angle=23.3,
    graduation_fg_colour=0xffffff, graduation_fg_alpha=1,
    caption='',
    caption_weight=1,              caption_size=8.0,
    caption_fg_colour=0xFFFFFF,    caption_fg_alpha=0,
},

}

-------------------------------------------------------------------------------
--                                                                 rgb_to_r_g_b
-- converts color in hexa to decimal
--
function rgb_to_r_g_b(colour, alpha)
    return ((colour / 0x10000) % 0x100) / 255., ((colour / 0x100) % 0x100) / 255., (colour % 0x100) / 255., alpha
end

-------------------------------------------------------------------------------
--                                                            angle_to_position
-- convert degree to rad and rotate (0 degree is top/north)
--
function angle_to_position(start_angle, current_angle)
    local pos = current_angle + start_angle
    return ( ( pos * (2 * math.pi / 360) ) - (math.pi / 2) )
end

-------------------------------------------------------------------------------
--                                                              draw_gauge_ring
-- displays gauges
--
function draw_gauge_ring(display, data, value)
    local max_value = data['max_value']-data['sub_value']
    local sub_value = data['sub_value']
    local x, y = data['x'], data['y']
    local graph_radius = data['graph_radius']
    local graph_thickness, graph_unit_thickness = data['graph_thickness'], data['graph_unit_thickness']
    local graph_start_angle = data['graph_start_angle']
    local graph_unit_angle = data['graph_unit_angle']
    local graph_bg_colour, graph_bg_alpha = data['graph_bg_colour'], data['graph_bg_alpha']
    local graph_fg_colour, graph_fg_alpha = data['graph_fg_colour'], data['graph_fg_alpha']
    local hand_fg_colour, hand_fg_alpha = data['hand_fg_colour'], data['hand_fg_alpha']
    local graph_end_angle = (max_value * graph_unit_angle) % 360

    -- background ring
    cairo_arc(display, x, y, graph_radius, angle_to_position(graph_start_angle, 0), angle_to_position(graph_start_angle, graph_end_angle))
    cairo_set_source_rgba(display, rgb_to_r_g_b(graph_bg_colour, graph_bg_alpha))
    cairo_set_line_width(display, graph_thickness)
    cairo_stroke(display)

    -- arc of value
    local val = (value-sub_value) % (max_value + 1)
    local start_arc = 0
    local stop_arc = 0
    local i = 1
    while i <= val do
        start_arc = (graph_unit_angle * i) - graph_unit_thickness
        stop_arc = (graph_unit_angle * i)
        cairo_arc(display, x, y, graph_radius, angle_to_position(graph_start_angle, start_arc), angle_to_position(graph_start_angle, stop_arc))
        cairo_set_source_rgba(display, rgb_to_r_g_b(graph_fg_colour, graph_fg_alpha))
        cairo_stroke(display)
        i = i + 1
    end
    local angle = start_arc

    -- hand
    start_arc = (graph_unit_angle * val) - (graph_unit_thickness * 2)
    stop_arc = (graph_unit_angle * val)
    cairo_arc(display, x, y, graph_radius, angle_to_position(graph_start_angle, start_arc), angle_to_position(graph_start_angle, stop_arc))
    cairo_set_source_rgba(display, rgb_to_r_g_b(hand_fg_colour, hand_fg_alpha))
    cairo_stroke(display)

    -- graduations marks
    local graduation_radius = data['graduation_radius']
    local graduation_thickness, graduation_mark_thickness = data['graduation_thickness'], data['graduation_mark_thickness']
    local graduation_unit_angle = data['graduation_unit_angle']
    local graduation_fg_colour, graduation_fg_alpha = data['graduation_fg_colour'], data['graduation_fg_alpha']
    if graduation_radius > 0 and graduation_thickness > 0 and graduation_unit_angle > 0 then
        local nb_graduation = graph_end_angle / graduation_unit_angle
        local i = 0
        while i < nb_graduation do
            cairo_set_line_width(display, graduation_thickness)
            start_arc = (graduation_unit_angle * i) - (graduation_mark_thickness / 2)
            stop_arc = (graduation_unit_angle * i) + (graduation_mark_thickness / 2)
            cairo_arc(display, x, y, graduation_radius, angle_to_position(graph_start_angle, start_arc), angle_to_position(graph_start_angle, stop_arc))
            cairo_set_source_rgba(display,rgb_to_r_g_b(graduation_fg_colour,graduation_fg_alpha))
            cairo_stroke(display)
            cairo_set_line_width(display, graph_thickness)
            i = i + 1
        end
    end

    -- text
    local txt_radius = data['txt_radius']
    local txt_weight, txt_size = data['txt_weight'], data['txt_size']
    local txt_fg_colour, txt_fg_alpha = data['txt_fg_colour'], data['txt_fg_alpha']
    local movex = txt_radius * math.cos(angle_to_position(graph_start_angle, angle))
    local movey = txt_radius * math.sin(angle_to_position(graph_start_angle, angle))
    cairo_select_font_face (display, "ubuntu", CAIRO_FONT_SLANT_NORMAL, txt_weight)
    cairo_set_font_size (display, txt_size)
    cairo_set_source_rgba (display, rgb_to_r_g_b(txt_fg_colour, txt_fg_alpha))
    cairo_move_to (display, x + movex - (txt_size / 2), y + movey + 3)
    cairo_show_text (display, value)
    cairo_stroke (display)

    -- caption
    local caption = data['caption']
    local caption_weight, caption_size = data['caption_weight'], data['caption_size']
    local caption_fg_colour, caption_fg_alpha = data['caption_fg_colour'], data['caption_fg_alpha']
    local tox = graph_radius * (math.cos((graph_start_angle * 2 * math.pi / 360)-(math.pi/2)))
    local toy = graph_radius * (math.sin((graph_start_angle * 2 * math.pi / 360)-(math.pi/2)))
    cairo_select_font_face (display, "ubuntu", CAIRO_FONT_SLANT_NORMAL, caption_weight);
    cairo_set_font_size (display, caption_size)
    cairo_set_source_rgba (display, rgb_to_r_g_b(caption_fg_colour, caption_fg_alpha))
    cairo_move_to (display, x + tox + 5, y + toy + 1)
    -- bad hack but not enough time !
    if graph_start_angle < 105 then
        cairo_move_to (display, x + tox - 30, y + toy + 1)
    end
    cairo_show_text (display, caption)
    cairo_stroke (display)
end


-------------------------------------------------------------------------------
--                                                               go_gauge_rings
-- loads data and displays gauges
--
function go_gauge_rings(display)
    local function load_gauge_rings(display, data)
        local str, value = '', 0
        str = string.format('${%s %s}',data['name'], data['arg'])
        str = conky_parse(str)
        value = tonumber(str)
        draw_gauge_ring(display, data, value)
    end

    for i in pairs(gauge) do
        load_gauge_rings(display, gauge[i])
    end
end

-------------------------------------------------------------------------------
--                                                                         MAIN
function conky_main()
    if conky_window == nil then
        return
    end

    local cs = cairo_xlib_surface_create(conky_window.display, conky_window.drawable, conky_window.visual, conky_window.width, conky_window.height)
    local display = cairo_create(cs)

    local updates = conky_parse('${updates}')
    update_num = tonumber(updates)

    if update_num > 5 then
        go_gauge_rings(display)
    end

end

& here the weather conky

Didiert

conky.config = {
	background = true,
	use_xft = true,
	font = 'Liberation Sans:size=8',
	xftalpha = 1,
	update_interval = 1.0,
	total_run_times = 0,
	own_window = true,
	own_window_transparent = false,
        own_window_argb_visual = true,
        own_window_argb_value = 0,     -- 0 transparent 255 plein
	own_window_type = 'normal',
	own_window_hints = 'undecorated,below,skip_taskbar,skip_pager,',
	double_buffer = true,
	minimum_width = 450, minimum_height = 410,
        maximum_width = 450,
	text_buffer_size = 2048,
	draw_shades = false,
	draw_outline = false,
	draw_borders = false,
	draw_graph_borders = false,
	default_color = 'white',
	default_outline_color = 'white',
	alignment = 'top_left',
	gap_x = 50,
	gap_y = 50,
	no_buffers = true,
	uppercase = false,
	cpu_avg_samples = 2,
	override_utf8_locale = true,
        imlib_cache_flush_interval = 60,
	imlib_cache_size = 10000,
	stippled_borders = 5,
        default_shade_color = '#333333',
	default_outline_color = 'black',

lua_load = '~/.conky/lua/image.lua',


color1 = 'F5B800',
color2 = '00f5ff',
color3 = '828200',
color4 = '323200',
color5 = 'fdb72e',
color7 = '6495ee',
color9 = 'red',
};

conky.text = [[   ${texeci 2900 bash $HOME/Accuweather_conky_script/accuweather -h2015 -f2015} ${texeci 3600 bash $HOME/Wunderground_conky_script/wunderground}
#### Premier cadre ####
${voffset -8}${font LED_mono :style=Medium:size=52}${color 434343}${goto 27}${time %H}${goto 138}${time %M}${font LED_mono :size=20:style=Medium}${color 808080}${goto 235}${time %S}$font
#### Date ####
${voffset -60}${color white}${font GE Inspira:size=10}${alignc -108}${time %A, %d %B %Y}$font
                                                     ${alignc -180}Mise @ jour : ${execpi 600 sed -n '1p' $HOME/Wunderground_conky_script/actualisation}
### vent ####
${goto 300}${font Ge Inspira:size=8}Vent : ${texeci 600 sed -n '17p' $HOME/Accuweather_conky_script/curr_cond |awk '{print $1}'} ${texeci 600 sed -n '17p' $HOME/Accuweather_conky_script/curr_cond |awk '{print $1}' > $HOME/Accuweather_conky_script/vent}
${goto 300}Vitesse : ${texeci 600 sed -n '17p' $HOME/Accuweather_conky_script/curr_cond |awk '{print $2}'} km/h
${goto 300}Préssion : $font ${execi 600 sed -n '10p' $HOME/Accuweather_conky_script/curr_cond}${font Ge Inspira:size=8}
${goto 300}Indice UV : ${execi 600 sed -n '5p' $HOME/Accuweather_conky_script/curr_cond} ${execi 600 sed -n '6p' $HOME/Accuweather_conky_script/curr_cond}
${goto 300}Visibilité  : ${execi 600 sed -n '21p' $HOME/Accuweather_conky_script/curr_cond}s
${goto 300}Point de rosé : ${execi 600 sed -n '8p' $HOME/Accuweather_conky_script/curr_cond} °C
${goto 300}Couv. nuageuse : ${execi 600 sed -n '13p' $HOME/Accuweather_conky_script/curr_cond}
${goto 300}Point de rosé : ${execi 600 sed -n '8p' $HOME/Accuweather_conky_script/curr_cond} °C
#### Ville ####
${voffset -60}${goto 16}${font GE Inspira:size=14:}Sarreguemines : ${font} ${execi 600 sed -n '4p' $HOME/Accuweather_conky_script/curr_cond}
              ${goto 16}Temp.: ${execi 600 sed -n '2p' $HOME/Accuweather_conky_script/curr_cond} °C   Res.: ${execi 600 sed -n '3p' $HOME/Accuweather_conky_script/curr_cond} °C
${goto 16}Soleil ↑ ${execi 600 sed -n '14p' $HOME/Accuweather_conky_script/curr_cond} ↓ ${execi 600 sed -n '15p' $HOME/Accuweather_conky_script/curr_cond} = ${execi 600 sed -n '16p' $HOME/Accuweather_conky_script/curr_cond}
${goto 16}Lune  ↑ ${execi 600 sed -n '18p' $HOME/Accuweather_conky_script/curr_cond} ↓ ${execi 600 sed -n '19p' $HOME/Accuweather_conky_script/curr_cond} = ${execi 600 sed -n '20p' $HOME/Accuweather_conky_script/curr_cond} ${execpi 600 sed -n '1p' $HOME/Wunderground_conky_script/lune}
#### Deuxième cadre ####
##### Affichage temperatures #####
${voffset 34}
 ${goto 28}${color7}${texeci 600 sed -n  '5p' $HOME/Accuweather_conky_script/daily_forecast}°${color}/${color9}${texeci 600 sed -n  '4p' $HOME/Accuweather_conky_script/daily_forecast}°\
 ${goto 95}${color7}${execpi 600 sed -n '12p' $HOME/Accuweather_conky_script/daily_forecast}°${color}/${color9}${execpi 600 sed -n '11p' $HOME/Accuweather_conky_script/daily_forecast}°\
${goto 170}${color7}${execpi 600 sed -n '19p' $HOME/Accuweather_conky_script/daily_forecast}°${color}/${color9}${execpi 600 sed -n '18p' $HOME/Accuweather_conky_script/daily_forecast}°\
${goto 245}${color7}${execpi 600 sed -n '26p' $HOME/Accuweather_conky_script/daily_forecast}°${color}/${color9}${execpi 600 sed -n '25p' $HOME/Accuweather_conky_script/daily_forecast}°\
${goto 320}${color7}${execpi 600 sed -n '33p' $HOME/Accuweather_conky_script/daily_forecast}°${color}/${color9}${execpi 600 sed -n '32p' $HOME/Accuweather_conky_script/daily_forecast}°\
${goto 400}${color7}${execpi 600 sed -n '40p' $HOME/Accuweather_conky_script/daily_forecast}°${color}/${color9}${execpi 600 sed -n '39p' $HOME/Accuweather_conky_script/daily_forecast}°${color}
#### Affichage date ####
 ${goto 20}Aujourd'hui\
 ${goto 95}${execi 3600 echo `date --date="1 day" | awk '{print $1}' | cut -c1-3`}.${execi 3600 echo `date --date="1 day" | awk '{print $2}'`}\
${goto 170}${execi 3600 echo `date --date="2 day" | awk '{print $1}' | cut -c1-3`}.${execi 3600 echo `date --date="2 day" | awk '{print $2}'`}\
${goto 245}${execi 3600 echo `date --date="3 day" | awk '{print $1}' | cut -c1-3`}.${execi 3600 echo `date --date="3 day" | awk '{print $2}'`}\
${goto 320}${execi 3600 echo `date --date="4 day" | awk '{print $1}' | cut -c1-3`}.${execi 3600 echo `date --date="4 day" | awk '{print $2}'`}\
${goto 400}${execi 3600 echo `date --date="5 day" | awk '{print $1}' | cut -c1-3`}.${execi 3600 echo `date --date="5 day" | awk '{print $2}'`}
#### Conditions ####
 ${goto 20}${scroll 12 ${execpi 600 sed -n  '6p' $HOME/Accuweather_conky_script/daily_forecast}}\
 ${goto 95}${scroll 12 ${execpi 600 sed -n '13p' $HOME/Accuweather_conky_script/daily_forecast}}\
${goto 170}${scroll 12 ${execpi 600 sed -n '20p' $HOME/Accuweather_conky_script/daily_forecast}}\
${goto 245}${scroll 12 ${execpi 600 sed -n '27p' $HOME/Accuweather_conky_script/daily_forecast}}\
${goto 320}${scroll 12 ${execpi 600 sed -n '34p' $HOME/Accuweather_conky_script/daily_forecast}}\
${goto 396}${scroll 10 ${execpi 600 sed -n '41p' $HOME/Accuweather_conky_script/daily_forecast}}

#### Prochaine heure ###
${goto 20}Dans une heure
${goto 28}Il y aura une température de : ${color7}${texeci 600 sed -n  '4p' $HOME/Accuweather_conky_script/hourly}°C${color}  avec un ressenti de : ${color9}${texeci 600 sed -n  '6p' $HOME/Accuweather_conky_script/hourly}°C
${goto 28}$color Il fera : ${color7}${execpi 600 sed -n  '7p' $HOME/Accuweather_conky_script/hourly}
${goto 28}$color Avec du vent de : ${color7}${execpi 600 sed -n   '51p' $HOME/Wunderground_conky_script/hourly} $color soufflant à ${color9}${execpi 600 sed -n   '47p' $HOME/Wunderground_conky_script/hourly} km/h $color et en rafale à ${color7}${execpi 600 sed -n   '53p' $HOME/Wunderground_conky_script/hourly} km/h


#### Affichage  utilisés dans le conky ####
#### premier cadre ####
${lua fDrawImage $HOME/Accuweather_conky_script/fond/flip_bg.png 22 3 100 100}
${lua fDrawImage $HOME/Accuweather_conky_script/fond/flip_bg.png 132 3 100 100}
#### icônes premier cadre ####
${lua fDrawImage $HOME/Accuweather_conky_script/forecast_2015/forecast_0.png 185 70 115 69}
${lua fDrawImage $HOME/Accuweather_conky_script/Wind1.png 400 26 45 45}
#### icônes deuxième cadre ####
${lua fDrawImage $HOME/Accuweather_conky_script/forecast_2015/forecast_1.png  10 152 70 42}
${lua fDrawImage $HOME/Accuweather_conky_script/forecast_2015/forecast_2.png  80 152 70 42}
${lua fDrawImage $HOME/Accuweather_conky_script/forecast_2015/forecast_3.png 155 152 70 42}
${lua fDrawImage $HOME/Accuweather_conky_script/forecast_2015/forecast_4.png 230 152 70 42}
${lua fDrawImage $HOME/Accuweather_conky_script/forecast_2015/forecast_5.png 305 152 70 42}
${lua fDrawImage $HOME/Accuweather_conky_script/forecast_2015/forecast_6.png 388 152 70 42}

${lua fDrawImage $HOME/Accuweather_conky_script/hourly_2015/hourly_1.png  388 262 70 42}
${voffset - 800}

]];

Voila

@+

Last edited by loutch (2022-06-22 07:35:22)

rwyarbrough · 2022-06-22 08:43:33

Nifty!!! Thank you so much.

il.harun · 2022-06-22 09:21:31

accuweather script: line 375
sed '/sunrise-sunset/,/temp-history content-module/!d' $HOME/Accuweather_conky_script/curr_cond_raw > $HOME/Accuweather_conky_script/curr_cond_temp1

replaced by:
sed '/sunrise-sunset non-ad/,/temp-history content-module/!d' $HOME/Accuweather_conky_script/curr_cond_raw > $HOME/Accuweather_conky_script/curr_cond_temp1

rwyarbrough · 2022-06-23 05:25:25

loutch wrote:

Here mine baro
conkyrc (i use the image.lua script for the images)

Where is this image.lua script?

Thanks

#4081 2022-05-12 10:57:20

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4082 2022-05-12 11:03:05

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4083 2022-05-12 11:31:45

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4084 2022-05-12 15:23:05

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4085 2022-05-12 17:42:13

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4086 2022-05-14 16:49:53

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4087 2022-05-15 07:33:01

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4088 2022-05-15 08:38:31

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4089 2022-05-15 10:41:15

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4090 2022-05-15 13:14:44

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4091 2022-05-15 13:39:07

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4092 2022-05-15 14:48:57

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4093 2022-05-16 09:45:15

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4094 2022-05-16 16:09:44

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4095 2022-05-28 15:06:59

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4096 2022-06-18 09:44:42

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4097 2022-06-22 07:33:29

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4098 2022-06-22 08:43:33

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4099 2022-06-22 09:21:31

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

#4100 2022-06-23 05:25:25

Re: Conky weather+moon scripts (Accuw/WUndergr/NWS/MoonGiant)

Board footer
